System FSB 4 75/2 AL MS

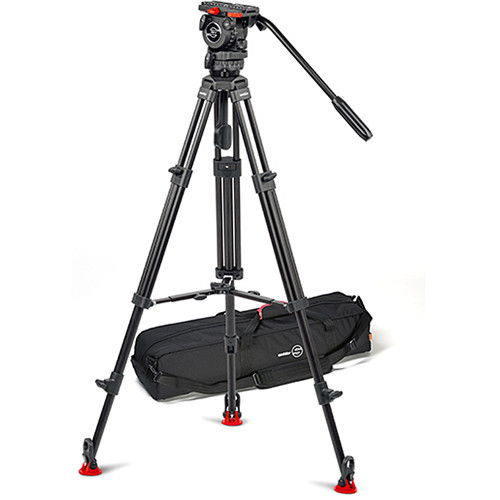

Sachtler system FSB 4 Sideload with tripod 75/2 AL, mid-level spreader and bag

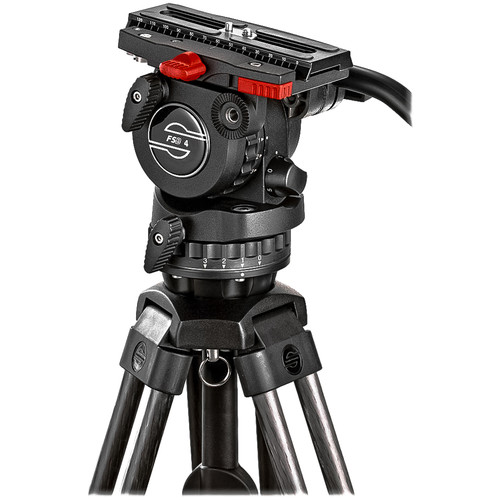

When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 fluid head doesn’t mean you have to compromise on performance. It gives you rapid weight compensation for payloads of up to 4 kg, while the Sideload mechanism means mounting handheld cameras and DSLRs can be done from the side. Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, Sachtler drag always gives smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results. Weighting in at just 4.8 kg, this Sachtler system with an aluminum tripod is perfect for ultra-light camcorders and DSLR cameras.

Product Highlights

• Smooth operation
  Create precision pans with smooth starts and soft stops.
• Finely balanced
  Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.
• Built for endurance.
  Engineered to the highest standards with tough materials and precision components, FSB is built for endurance.

Pan bar count

1

Payload

0 to 8.80 lb

Bowl size

75 mm

Weight

10.12 lb

Spreader type

Mid-level spreader

Material

Carbon Fibre

Transport length

33.93 in

Tripod stages

2

Height with spreader

2.62 to 5.61 ft

Temperature range

-40 to 140 °F

Tilt range

90° to -70°

Sliding range

4.68 in

Interface Compatibility

Sideload

Counterbalance

5 + 0 counterbalance steps

Drag

3 + 0 drag settings

IN THE BOX:

FSB 4 fluid head #0307 with Sideload plate S and one pan bar DV 75; tripod 75/2 CF with mid-level spreader; padded bag #9108

• FSB 4

• Padded bag DV 75 S

• Mid-level spreader 75

• Tripod 75/2 AL
