Ace XL

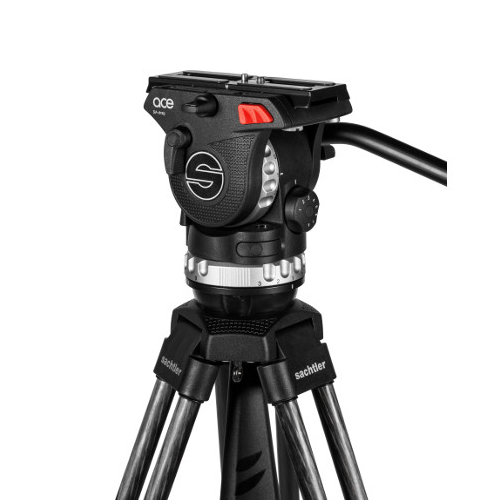

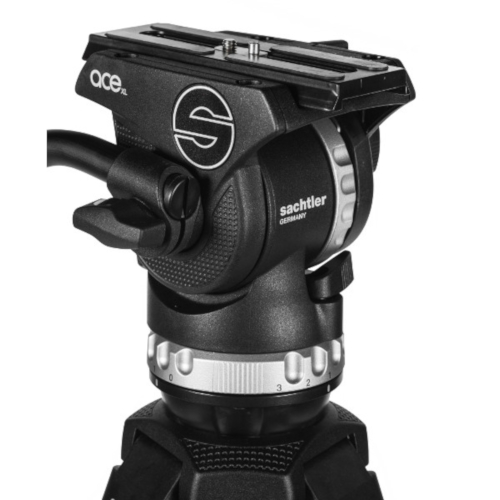

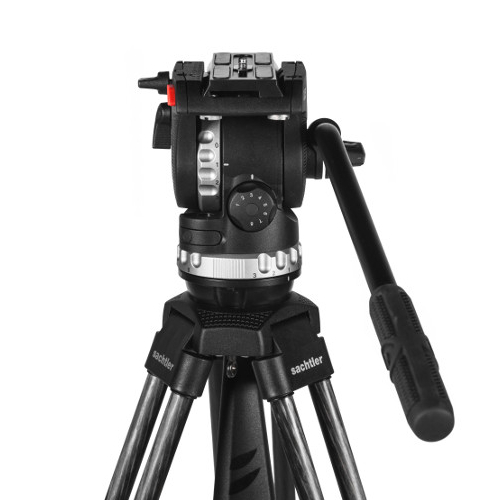

Sachtler Ace XL Fluid Head with Slide-in Camera Plate and Pan Bar
SKU: S2150-0004
Professional performance means maximum stability and jerk-free camera movement, even when supporting heavier digital cine-style cameras and rigs. The Sachtler Ace XL Fluid Head supports up to 8 kg @ 55 mm cog and the eight counterbalance steps mean that camera balancing is always quick and simple. The lightweight design means that it won’t weigh you down, while the high degree of stability means that it won’t let you down either.
A range of features make the Sachtler Ace XL Fluid Head a versatile part of your kit. The 75 mm ball-based head has an integrated flat bottom designed to accommodate a wide range of configured rigs. The integrated flat head base means that the Ace XL can be modified for shooting with a slider. Once you have set up, the three steps of pan and drag plus zero allow for effortless smooth movement. Durable, lightweight and designed with the user in mind, this fluid head will remain a part of your kit for years.
Payload
4.40 to 17.60 lb
Counterbalance
8 steps
Drag
3 + 0 drag settings
Weight
3.74 lb
Pan bar length
14.59 in
Pan bar type
Pan bar Ace
Pan bar attachment
16/-/26 mm
Pan bar count
1
Level bubble
Yes, illuminated
Battery type
CR1225
Adaptor viewfinder extension
No Adaptor
Bowl size
75 mm
Flat base
integrated
Camera plate
Ace Plate
Temperature range
-22 to 140 °F
Tilt range
+90° to -75°
Sliding range
4.06 in
Interface Compatibility
Slide-in
