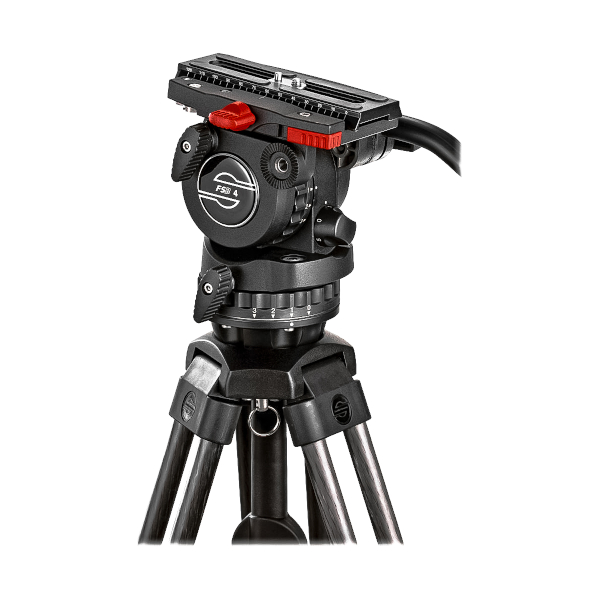

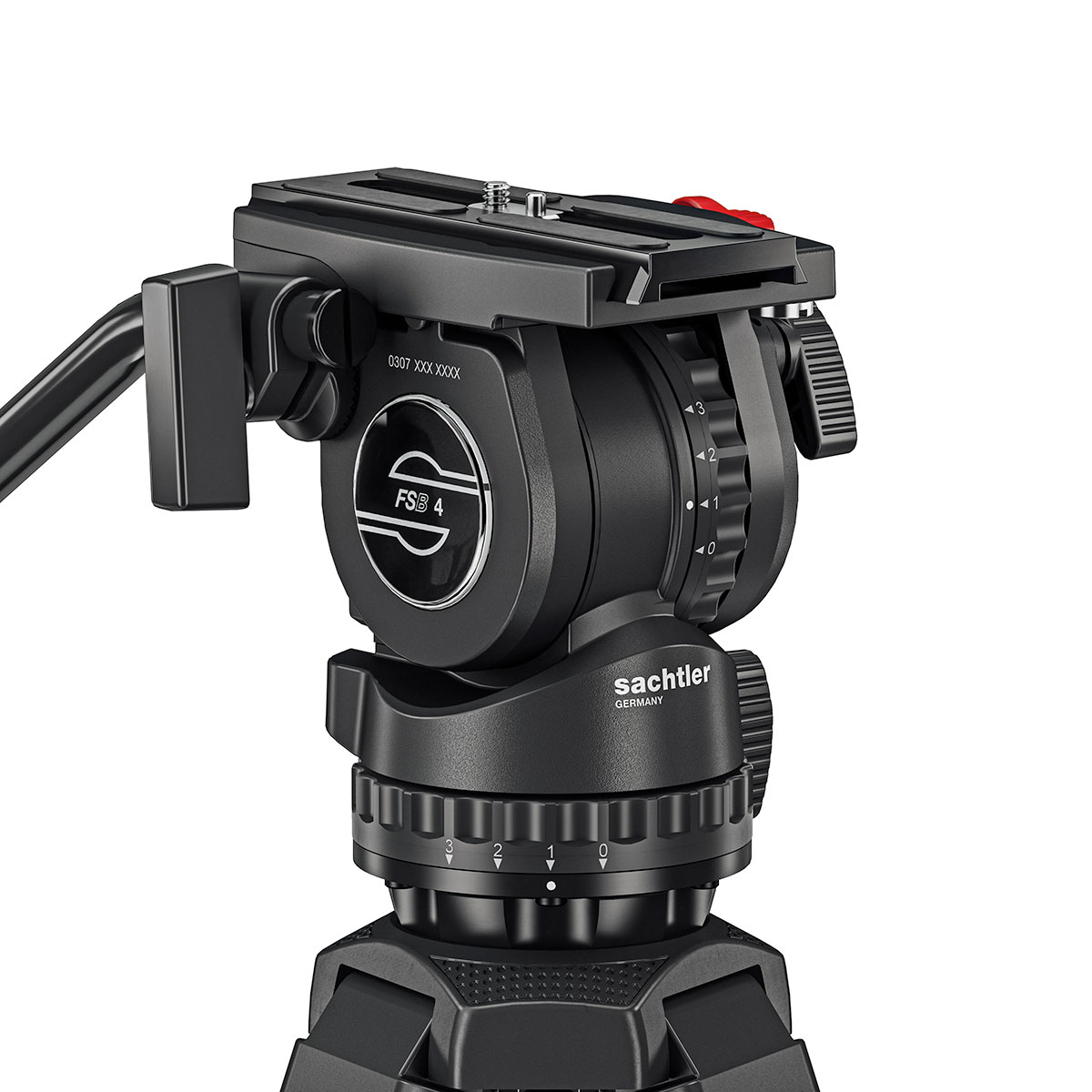

When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 Fluid Head doesn’t mean you have to compromise on performance. Speedbalance technology gives you rapid weight compensation for payloads of up to 4 kg, while the snap and go side loading mechanism means mounting handheld cameras and DSLRs can be done from the side of the tripod.

Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, patented Sachtler vibration damping always gives you subtle and smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results.

Payload

0 to 8.80 lb

Counterbalance

5 steps + 0

Drag

3 + 0 drag settings

Weight

5.28 lb

Pan bar length

16.77 in

Pan bar type

Pan bar DV 75

Pan bar attachment

16/-/28 mm

Pan bar count

1

Level bubble

Yes

Adaptor viewfinder extension

No Adaptor

Bowl size

75 mm

Flat base

integrated

Camera plate

Sideload plate S

Temperature range

-40 to 140 °F

Tilt range

+90° to -70°

Sliding range

4.68 in

Interface Compatibility

Sideload

IN THE BOX:

• FSB 4 fluid head with one pan bar DV 75 and one camera plate Sideload plate S

• Pan bar DV 75

• Sideload plate S / Ace plate
