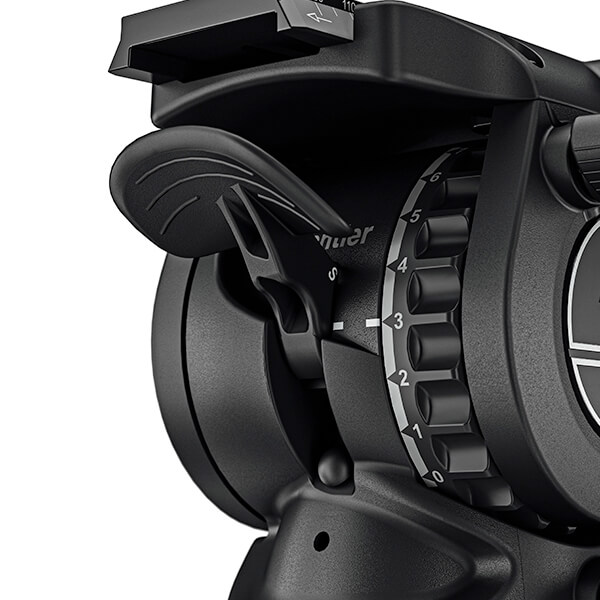

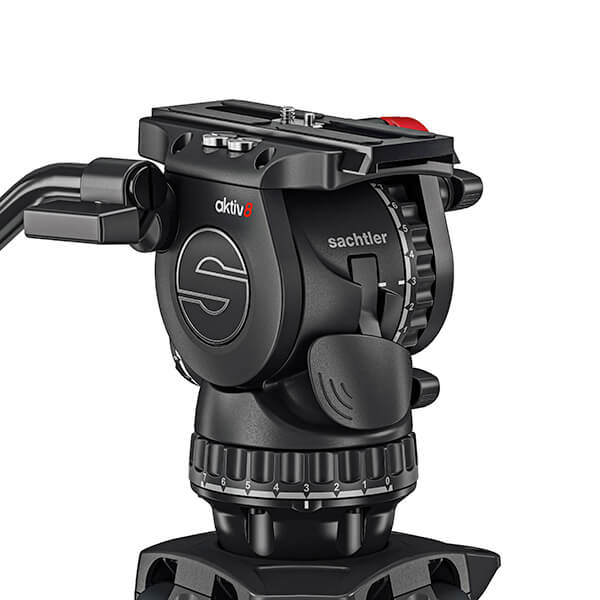

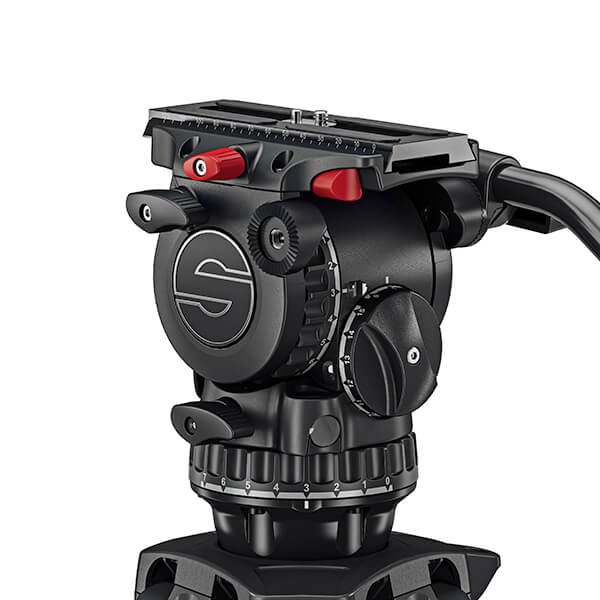

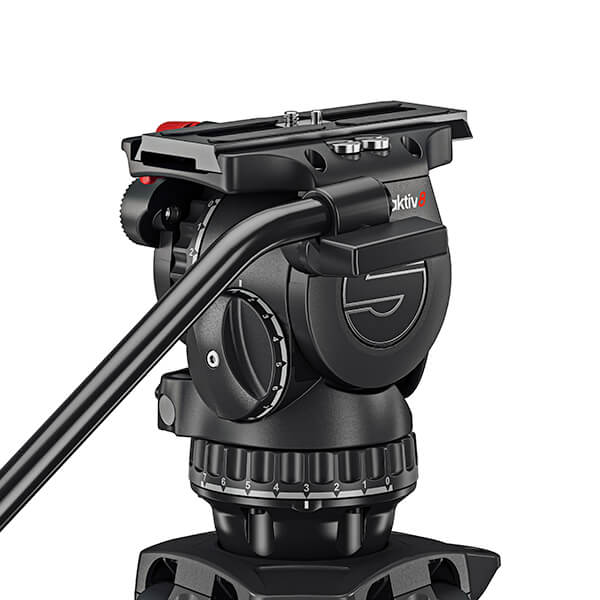

This Sachtler aktiv™ 75 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.
Product Highlights
- Level and lock your head in an instant without missing a second of action
Unique SpeedLevel technology. - Visible from any height or angle - day or night.

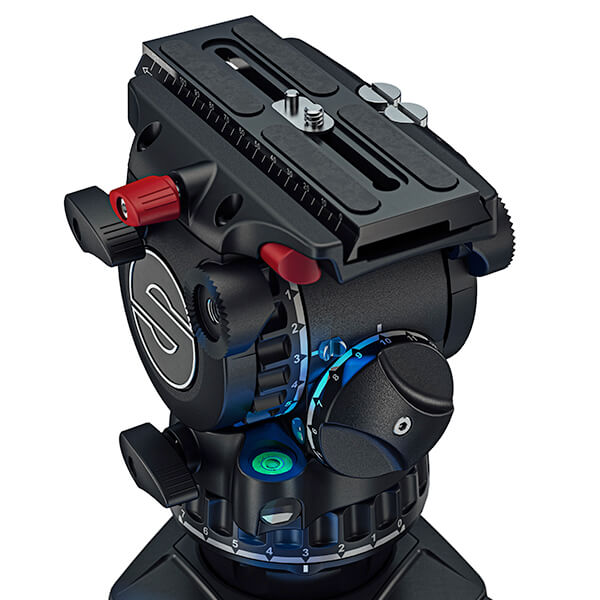

Innovative PrismBubble. - Capture extreme low angle shots right down to the ground.
Innovative streamlined mounting system. - Switch between tripod and slider in seconds.
Revolutionary SpeedSwap system. - Create moving stories, whatever the weather.
Performance tested to the extreme.
Tripod Compatibility
- aktiv fluid heads are compatible with Sachtler tripods. To leverage the revolutionary aktiv technology the flowtech®75 tripod has been upgraded to flowtech75 aktiv.
- aktiv6, aktiv8 and aktiv8T systems include the new flowtech75 aktiv tripod.
- You can find a list of all compatible tripods on the compatibility section on this page.
Counterbalance
15 + 0 steps
Drag
7 + 0 drag settings
Weight
5.94 lb
Pan bar length
16.77 in
Pan bar type
Pan bar DV 75
Pan bar attachment
16/-/28 mm
Pan bar count
1
Level bubble
Yes, illuminated
Battery type
CR2032
Bowl size
75 mm
Camera plate
Sideload plate S
Temperature range
-40 to 140 °F
Tilt range
+90° to -70°
Sliding range
4.68 in
Interface Compatibility
Sideload
In the box:
- aktiv8 fluid head with one pan bar DV 75 and one camera plate Sideload plate S
- flowtech75 metal bowl insert (to upgrade flowtech75 tripods for optimum performance with aktiv fluid heads) and Service Centres flowtech upgrade instructions.
-
Pan bar DV 75
-
Sideload plate S / Ace plate
-
aktiv bowl connector 75mm
-
flowtech75 metal bowl insert
