This Sachtler aktiv™ 75 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.


Product Highlights

• Level and lock your head in an instant without missing a second of action
  Unique SpeedLevel technology.

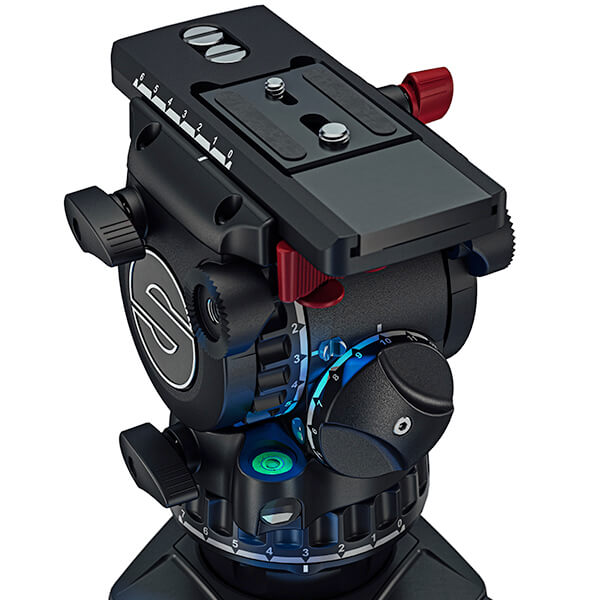

• Visible from any height or angle - day or night.
  Innovative PrismBubble.
• Capture extreme low angle shots right down to the ground.
  Innovative streamlined mounting system.
• Switch between tripod and slider in seconds.
  Revolutionary SpeedSwap system.
• Create moving stories, whatever the weather.
  Performance tested to the extreme.

Tripod Compatibility

• aktiv fluid heads are compatible with Sachtler tripods. To leverage the revolutionary aktiv technology the flowtech®75 tripod has been upgraded to flowtech75 aktiv.
• aktiv6, aktiv8 and aktiv8T systems include the new flowtech75 aktiv tripod.
• You can find a list of all compatible tripods on the compatibility section on this page.

Pan bar length

16.77 in

Pan bar type

Pan bar DV 75

Pan bar attachment

16/-/28 mm

Pan bar count

1

Level bubble

Yes, illuminated

Battery type

CR2032

Bowl size

75 mm

Camera plate

Touch & Go plate S

Temperature range

-40 to 140 °F

Tilt range

+90° to -70°

Sliding range

2.34 in

Interface Compatibility

Touch & Go

• aktiv8T fluid head with one pan bar DV 75 and one Touch & Go plate S
• flowtech75 metal bowl insert (to upgrade flowtech75 tripods for optimum performance with aktiv fluid heads) and Service Centre flowtech upgrade instructions.

• Pan bar DV 75

• Touch & Go plate S

• aktiv bowl connector 75mm

• flowtech75 metal bowl insert
