VCLX NM2 8675-0174

8675-0174
US$4,275.00 US$4,061.25

VCLX NM2 8675-0174

600 Wh free-standing battery ONLY. Complete kit part # is 8275-0155

With unique Multi-Voltage Output the VCLX NM2 is the perfect all-in-one battery solution for power hungry cameras, monitors, lights and more. One XLR3 and two XLR4 connectors provide multiple high current output delivering consistent 24A current at 14.4V, 16A at 28V or 12A at 48V from the 600Wh NiMH battery.

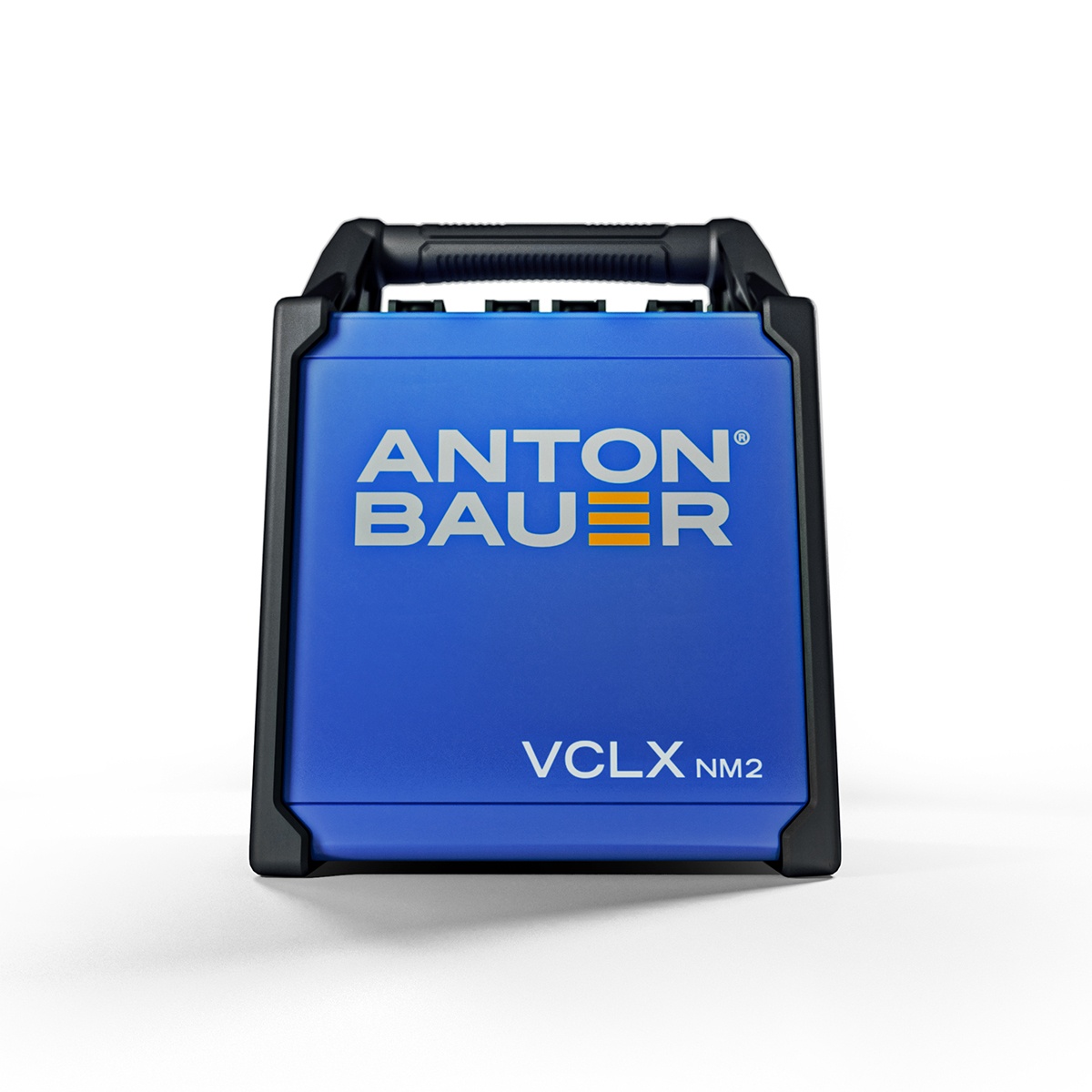

The Anton/Bauer VCLX NM2 Battery is a 14.4V, 28V and 48V 600Wh NiMH battery that provides dual simultaneous outputs and is ideal for high current applications. Power output is via two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28V or 48V.

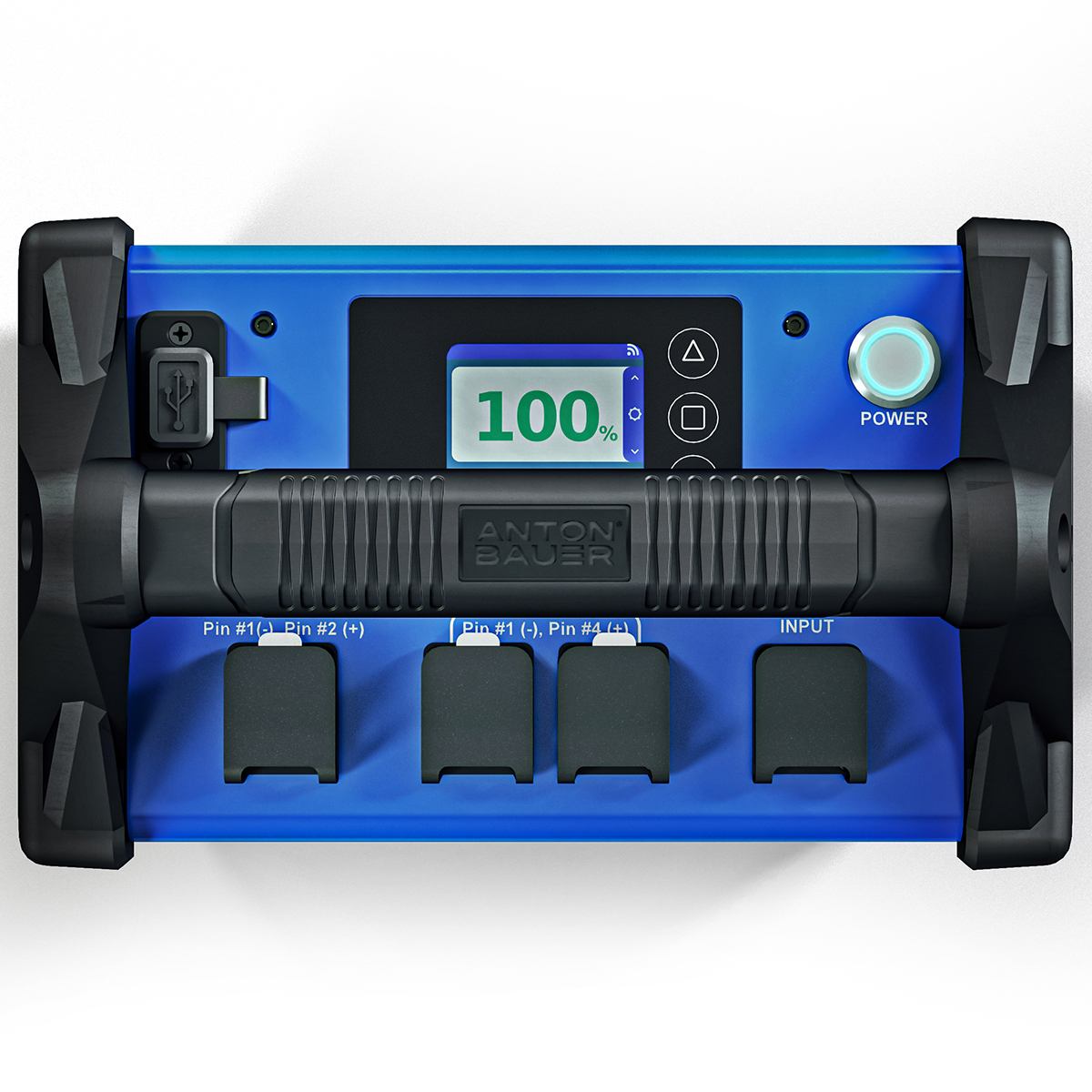

This battery connects to the VCLX 2 charger and using an advanced charge algorithm allows the fastest charge on the block battery market. Information such as the product ID, learned capacity, cycle count, time stamped errors, condition of the battery packs, and more is viewable either on the VCLX or through Anton Bauers Fleet Management program, which is made possible by the built in Wi-Fi. Smart electronic fuses controlled internally will prompt a warning on the LCD and will automatically reset and self-heal when the battery detects it is safe to do so.  This event is also recorded internally with date and time stamp for reviewing via Fleet Management. Also built into the battery is an 2.4″ LCD screen that accurately displays the percentage of remaining battery capacity at all times so you can perform real-time onboard diagnostics to keep your battery and equipment performing perfectly.

To protect against damage to the battery, this battery has a low voltage cut-off feature which will automatically shut off the battery at 12 volts.
